5200 Fragment Analyzer System

The 5200 Fragment Analyzer system is a parallel capillary electrophoresis instrument that improves lab efficiency allowing you to separate 12 samples in parallel in as little as 15 minutes. This system is designed to eliminate laboratory bottlenecks so you can focus on results.

The 5200 Fragment Analyzer system performs DNA QC and RNA QC for a broad range of samples including, gDNA, small RNA, cfDNA, large DNA fragments, and total RNA. The diversity of sample types these systems can separate make these instruments ideal for individualized workflows, including NGS library QC and CRISPR workflows


  • Separate 12 samples in parallel in as little as 15 minutes
  • Choose between three different capillary array lengths for the required blend of speed or resolution
  • Minimize instrument preparation time with no daily array handling requirements and room-temperature stable reagents
  • See clear results with separation resolution as good as 3 bp from fragments under 300 bp
  • Improve lab efficiency by loading and programming samples while a separation is currently running
  • Move samples up or down in queue to adjust run priorities
  • Use quality metrics for RNA (RQN) and genomic DNA (GQN) to remove subjective quality assessments
  • Kits provide a wide dynamic range covering two orders of magnitude
  • Achieve accurate molarity calculations with reliable smear analysis
  • IQ/OQ services available for use in GMP environments
  • Desktop PC supplied with a comprehensive 3-year warranty through HP


Ambient Temperature 20-23 °C
Dimensions (WxDxH) 35 cm x 61 cm x 86 cm
Line Frequency 47-63 Hz
Line Voltage 100-240 VAC
Number of Samples per Run 12
Operating Environment Relative Humidity 20-80 %
Power Consumption 150 VA
Weight 38.5 kg

How It Works


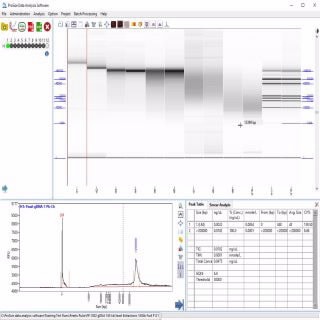

The broad range of kits available for the 5200 Fragment Analyzer system allow you to qualify and quantify DNA and RNA samples such as plasmids, genomic DNA, total RNA, small RNA, CRISPR edits, large DNA fragments, and much more. The quantitative kits provide measurements of both sample size (bp or nt) and concentration. Similarly, the qualitative DNA kits offer accurate sizing and provide relative quantification.

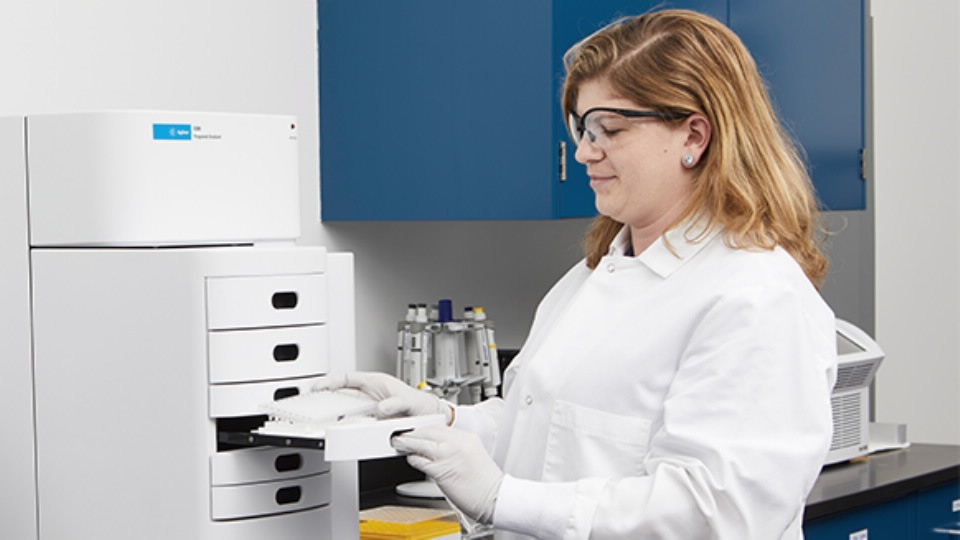

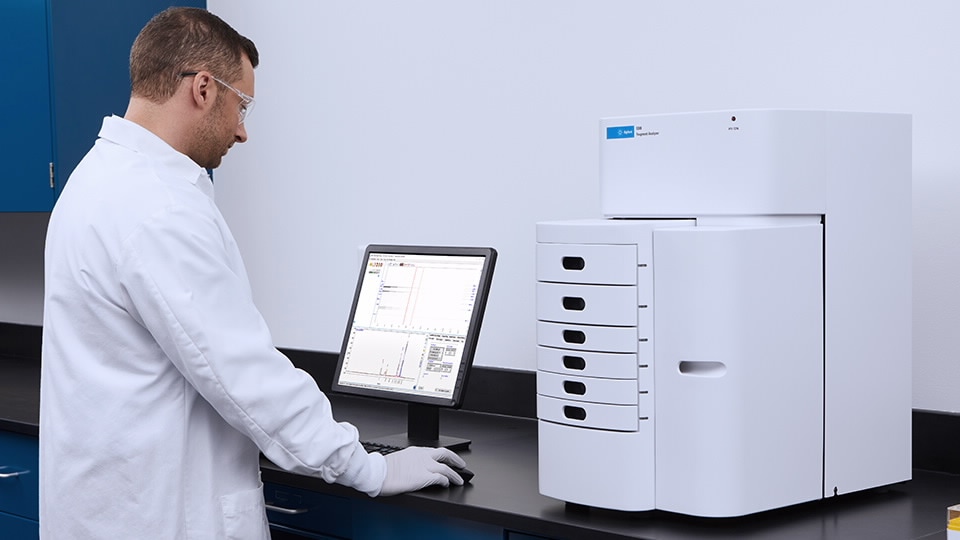

In busy laboratories, instrument accessibility is critical to reducing time to results. The 5200 Fragment Analyzer system can hold up to three, 96-well plates and process the plates in any order. This unprecedented capability allows for samples to be held on the instrument while awaiting separation. if needed, high-priority samples can be moved to the front of the line. Data files can then be saved to a networked computer for easy post-separation access.


With the unique ability to house two different gel matrices, the 5200 Fragment Analyzer system can run not only more samples, but also different types of samples, unattended. The operational software automates the gel switching and filling between different applications, eliminating unnecessary wait times.


Sample quality analyzed with the 5200 Fragment Analyzer system

Sample quality control of nucleic acids is essential in different workflows, including next generation sequencing or nucleic acid vaccine development. The 5200 Fragment Analyzer system with its highly versatile kit portfolio supports you by delivering objective quality metrics –RQN and GQN - as well as sizing and quantification of your samples. The 5200 Fragment Analyzer system can ensure accurate and reliable data for your NGS library QC and downstream applications.

Automated fragment analysis with the 5200 Fragment Analyzer system

Automated fragment analysis is a key step in genomic research and vaccine development workflows, generating confident fragment size and sample integrity results. The Agilent 5200 Fragment Analyzer system can accelerate your research by delivering fast and accurate results for genotyping, microsatellite analysis, and in vitro transcribed RNA fragment analysis. With a wide-ranging kit portfolio, you can choose one that best fits your specific application.
